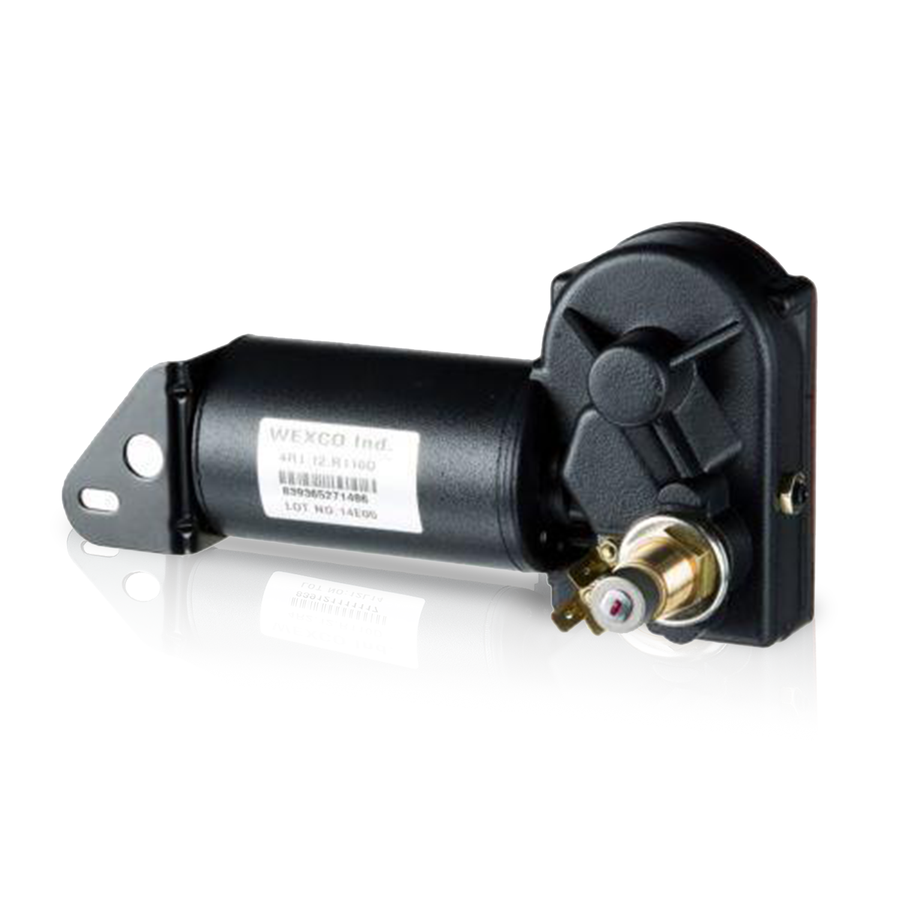

Autotex 4R-Series (WWF) Wiper Motor – 12V & 24V, 1.5", 2.5" & 3.5" Shaft, Multiple Sweep Angles

The Autotex 4R-Series (WWF) is a heavy-duty, self-contained oscillating wiper motor trusted in commercial trucks, farm tractors, construction equipment, boats, and specialty vehicles for over 50 years. Choose your voltage (12V or 24V), shaft length (1.5", 2.5", or 3.5"), and sweep angle (40°, 53°, 65°, 85°, 100°, or 110°) to match any application. Wipe angle and park position are fully adjustable in the field. The wiper switch can be wired to the cab or mounted directly on the motor.

Available Variants

Key Features

• Self-contained oscillating wiper system
• 1/2" drum pivot shaft
• Fully adjustable wipe angle and park position (left or right)
• Switch can be cab-wired or motor-mounted
• Stainless steel shaft, brass housing
• No connector — direct wire
• 12V or 24V


Typical Applications

• Commercial trucks and semi-tractors
• Farm tractors and agricultural equipment
• Construction and heavy equipment
• Marine vessels
• Specialty and custom-built vehicles
